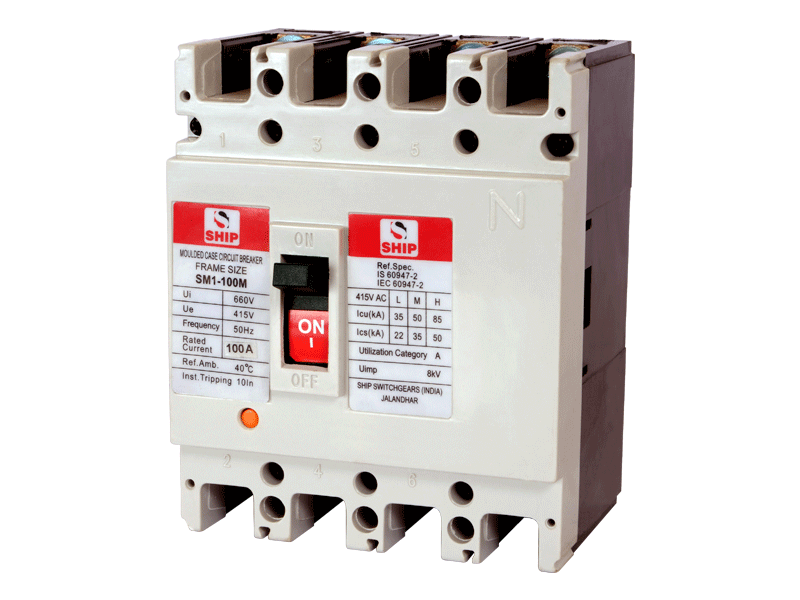

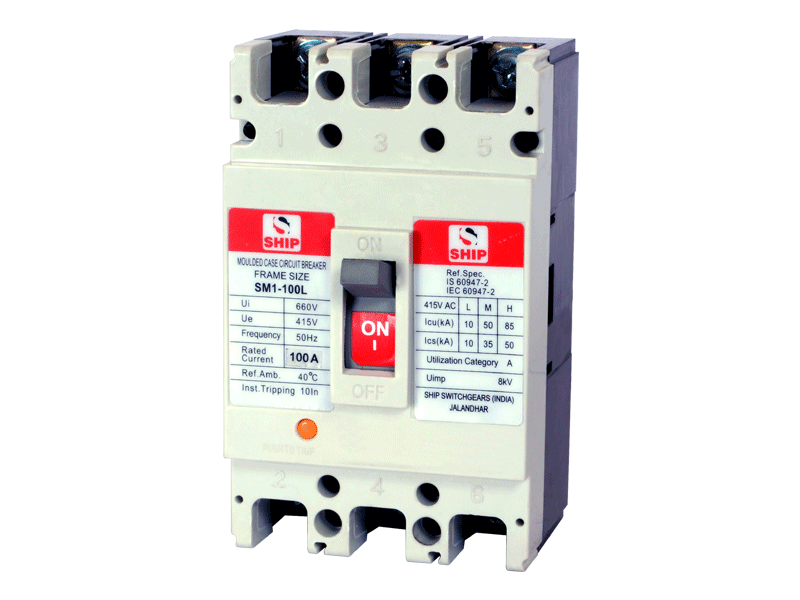

Moulded Case Circuit Breakers (RCCB)

Technical Features:

SHIP Moulded Case Circuit Breakers (MCCBs) are designed for circuit protection for low voltage distribution system. MCCBs are suitable for protection of Main branch and feeder circuit & connected equipments / load.

SHIP MCCBs provide fixed type overload and short circuit protection for all circuit elements. It is designed for use in Switchboards, Control Panels and in separate enclosures to meets the requirements of lighting, distribution and power circuits. Trip Free Mechanism - The MCCB trips internally in case of fault, even if the knob is in the ON position

SHIP SWITCHGEARS offers a comprehensive range of MCCBs in world class technology and fully conforms to the latest standards IEC-60947-1&2 / IS-13947-1&2.

The insulating Housing & Cover made of high strength, heat resistant, flame retardant resin bonded thermo setting material which provides Interphase insulation of a high dielectric strength and high withstands capacity against thermal and mechanical stresses. Protection against secondary fire hazards and increased safety of operating personnel.


Rated Voltage:

Breaking Capacity:

Rated Impulse Withstand Voltages:

Ref. Specification:

Ordering Code:
